Background Install: Installation for logged-in users

With the opsi-background-install extension, you can install software in the background when a user is logged in. If a conflict with running software is to be expected during an installation, the installation is deferred or the user is asked for the desired procedure.

Requirements

The extension is currently (05.2025) in the pilot phase, which serves to find errors and problems in the design of the extension. Only a small group of customers will be able to use it during this pilot phase in order to minimize the impact of any necessary changes.

This module is currently a paid extension. This means that you need a license file to unlock it. You will receive this file after you have purchased the extension. For evaluation purposes, we’re happy to provide you with a temporary license free of charge. Please contact us via email.

Further details can be found in the chapter opsi Extensions.

Introduction

Reason

The desire to install software with a logged-in user and (potentially) running software is caused by:

  • 24/7 operation, e.g. in hospitals

  • No possibility for nightly installation via WakeOnLan

  • Changed user behavior, especially with laptops: users never log out and leave programs running (and close the laptop).

Problems

Attempting to install with the user logged in leads to a number of problems:

  • Visibility: interference from windows popping up.

  • Installation conflicts: Conflicts with running software.

Problems

Problem: Visibility

The abundance of windows and messages which are quite useful during an installation without a logged-in user do not meet the requirements for an installation in the background.

Problem: Installation conflicts

The problem described here is essentially Windows-specific. Under Unixoids (Linux / MacOS) it is generally not a problem to replace running software without a running process interfering with the installation.
Under Windows, replacing a file that is in use is not possible or requires a reboot. The file (.exe) of a program that is running is therefore in use. Attempting to replace this file will inevitably lead to a problem if the software is running.

This extension is therefore only implemented for Windows.

The type of problems that occur with installation conflicts can be very different and, once they have occurred, can no longer be resolved automatically. Therefore, the occurrence of installation conflicts must be avoided in advance.

Even if this extension helps to avoid the problem, it remains the same:
The best time to install software on a Windows system is when no user is logged in, i.e. usually during startup or shutdown.
It is not without reason that these are precisely the system states that Windows itself uses to install updates.

Concept

Visibility

No changes to the script and configuration are necessary here, as everything necessary is already implemented in the opsi-client-agent:

  • opsi-script only runs on the winlogon desktop

  • opsi-event notifier only runs on the winlogon desktop

  • Interactive dialogs of the opsi-script are displayed on the current desktop via the opsiclientd

Avoid errors

Before (un)installation, a check must be made for disruptive running processes. To do this, the critical processes must be known. These are determined from:

  • The installation directory of the product.
    All *.exe within the installation directory are potentially critical processes. Processes running as a service are not regarded as disruptive processes.

The necessary checks are carried out in the opsi-script.exe interpreter. It is therefore not necessary to adapt the scripts in existing opsi products.
Instead, an opsi product requires additional metadata in order to be made ready for a background installation.
Has been implemented in the opsi script:

  • New product status deferred for deferred installations:

    • New report status (next to success, failed, suspended):
      deferred

    • Installation status: unchanged (installed)

    • Report: deferred

    • Actionrequest: remains unchanged (setup)

    • Installed version: unchanged

  • Recognition and interpretation of the metadata file:

    • Is this product authorized for background installation ?

    • Detection of potentially interfering processes

    • Check whether interfering processes are running

    • If necessary, interactive query as to what should be done with these processes:
      Defer (defer) or start the action request

Background Install activation

To activate the opsi-background-install extension, you must do the following:

  • Install a license for the extension.

  • Set the config opsi-script.backgroundinstall.active to true.

Procedure of the tests in the opsi-script

  1. Are users logged in?
    If not, there is no background install situation and therefore no further checks are necessary and the action request is executed.

  2. background install enabled ?
    If the Config opsi-script.backgroundinstall.active is not set to true, this extension is not activated and the action request is continued without further checking.

  3. Is a license for opsi-background-install installed ?
    If no, there is an error message in the log and the action request is continued without further checking.

  4. If all of the 3 previous conditions are met, we are in a background install situation in which an attempt is now made to avoid possible installation conflicts.

  5. Is there a meta data file ?
    If no, then the installation is moved (deferred). There is a corresponding warning in the log. An opsi product can be moved as often as required for this reason. I.e. MAX_DEFER does not apply here.
    This also means: All opsi products which you have not yet provided with a corresponding metadata file cannot be installed in a Background Install Situation.

  6. Creation of the List of critical processes.

    • The entry check_processes_from_dirs is read from the meta file. The directories specified here are checked for programs and these are added to the List of critical processes.

    • The entry processes is read from the meta file. The programs specified here are added to the List of critical processes.

    • All non-running processes are removed from the List of critical processes.

    • All running service processes are removed from the List of critical processes.

  7. Does the List of critical processes still contain at least one entry?
    If no, the action request is continued without further checking.

  8. Is DIALOG_TIMEOUT > 0 ?
    If no, the DEFAULT_ACTION (usually = defer) is selected.

  9. The user dialog is displayed.
    If there is no response from the user within the DIALOG_TIMEOUT (usually = 60 seconds), the DEFAULT_ACTION (usually = defer) is selected.

  10. recheck selected
    If recheck has been selected more than MAX_RECHECK (3) in succession, the option recheck is no longer offered and the DEFAULT_ACTION is now MAX_RECHECK_ACTION (defer).

  11. defer selected
    If defer has been selected more than MAX_DEFER (5) in succession, the option defer is no longer offered and the DEFAULT_ACTION is now MAX_DEFER_ACTION (kill).

  12. kill selected
    If kill is selected, opsi-script shuts down the interfering process(es) and the action request is continued.

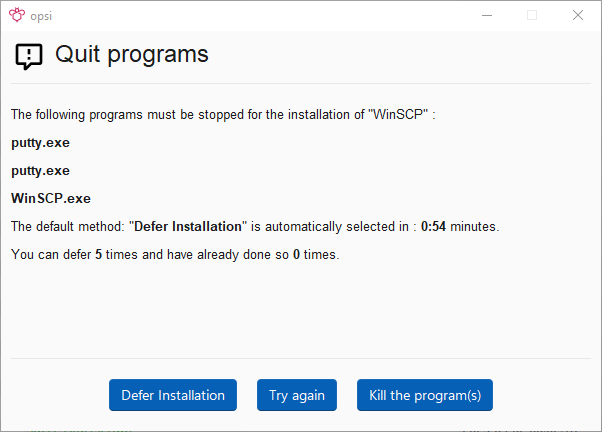

Dialog: `Quit programs`
Figure 1. opsi-setup-detector: Dialog: Quit programs

Configuration via configs

The defaults and how they can be configured via Configs Hostparameter.
The configs can be found under: opsi-script.backgroundinstall:

  • active (default initially false)
    This default value can be overwritten with the config opsi-script.backgroundinstall.active.

  • Default after timeout is defer ('Defer Installation')
    (DEFAULT_ACTION=defer)
    This default value can be overwritten with the Config opsi-script.backgroundinstall.default_action.

  • Timeout is 60 seconds
    (DIALOG_TIMEOUT=60)
    DIALOG_TIMEOUT = 0 means no interactivity,
    the DEFAULT_ACTION is executed directly.
    This default value can be overwritten with the config opsi-script.backgroundinstall.dialog_timeout.

  • After 3 rechecks in a row, MAX_RECHECK_ACTION is selected
    (MAX_RECHECK=3)
    This default value can be overwritten with the config opsi-script.backgroundinstall.max_recheck.

  • The default for MAX_RECHECK_ACTION=defer
    This default value can be overwritten with the Config opsi-script.backgroundinstall.max_recheck_action.

  • After 5 times defer in a row, MAX_DEFER_ACTION is selected
    (MAX_DEFER=5)
    This default value can be overwritten with the Config opsi-script.backgroundinstall.max_defer.

  • The default for MAX_DEFER_ACTION=kill
    This default value can be overwritten with the config opsi-script.backgroundinstall.max_defer_action.

If these configs do not yet exist, (e.g. in the pilot phase)
can be created with the following command line commands:

opsi-cli jsonrpc execute config_createBool opsi-script.backgroundinstall.active "bg-active" false
opsi-cli jsonrpc execute config_createUnicode opsi-script.backgroundinstall.default_action "bg-default_action" '["defer", "recheck", "kill"]' "defer" "false" "false"
opsi-cli jsonrpc execute config_createUnicode opsi-script.backgroundinstall.dialog_timeout "bg-dialog_timeout" "60" "60"
opsi-cli jsonrpc execute config_createUnicode opsi-script.backgroundinstall.max_recheck "bg-max_recheck" "3" "3"
opsi-cli jsonrpc execute config_createUnicode opsi-script.backgroundinstall.max_recheck_action "bg-max_recheck_action" '["defer", "recheck", "kill"]' "defer" "false" "false"
opsi-cli jsonrpc execute config_createUnicode opsi-script.backgroundinstall.max_defer "bg-max_defer" "5" "5"
opsi-cli jsonrpc execute config_createUnicode opsi-script.backgroundinstall.max_defer_action "bg-max_defer_action" '["defer", "recheck", "kill"]' "kill" "false" "false"

The metadata file: opsi-meta-data.toml.

For an opsi product to function correctly via background_install, it must contain some additional metadata. This is stored in the file opsi-meta-data.toml in the directory CLIENT_DATA. This file in TOML format must contain the following information for the background installation:

  • A table installers for each setup / installer file concerned. This table contains the following information:

    • Information about the processes to be checked:
      The lists of the directories to be checked: check_processes_from_dirs and the list of additional processes processes. If both lists are empty, no running processes are checked.

    • Furthermore, the entry install_in_background=false may be contained here. If this entry exists, this means that this product may not be installed in a Background Install Situation. Reasons for this could be required reboots or other unhandleable side effects.
      If this entry does not exist, the default applies: install_in_background=true.

  • In the installers.requirement table:

    • The specification of the required operating system (os).
      Allowed here are windows, linux, macos.
      The extension opsi-background-install is only implemented for windows.
      If no suitable OS entry is found, the product goes to failed.

    • The specification of the architecture of the required operating system (os_arch).
      Allowed here are x86, x64, arm64, arch_unknown. On an x64 Windows operating system, the requirement x86 is also fulfilled. The requirement x64 is not fulfilled on an x86 Windows operating system. The arch_unknown requirement is always fulfilled.

A valid opsi-meta-data.toml contains further data for other purposes:

  • A table specification with the version of the data specification.

  • A table product with the name of the product icon file.

  • In the installers table:

    • the path (path) to the installer file. The path specification may contain opsi-script constants.

    • The specification of the installation directory (install_dir) for the installer file. The path specification may contain opsi-script constants.

  • In the installers.requirement table:

    • the specification of the required space in MB (required_space_MB).

Examples

metadata file (example background installation - example 1)

A Windows setup file - minimal configuration

[specification]
version = '0.1'

[product]
product_icon_file_path = 'dummy.png'

[[installers]]
path = '%scriptpath%\files1\grepWin-1.6.15-x64.msi'
install_dir = '%ProgramFiles64Dir%\grepWin\'
check_processes_from_dirs = ['%ProgramFiles64Dir%\grepWin\']
processes = []

[installers.InstallerRequirement]
os_arch = 'x64'
os = 'Windows'
required_space_MB = 4
metadata file (example background installation - example 2)

Two Windows setup files - 32 / 64

[specification]
version='0.1'

[product]
product_icon_file_path = 'dummy.png'

[[installers]]
name = '7Zip-win32'
path = 'files1/7Zip-32-setup.exe'       # necessary
install_dir = '%ProgramFiles32Dir%\7-Zip'
check_processes_from_dirs = ['%ProgramFiles32Dir%\7-Zip']
processes = ['7z.exe','%ProgramFiles32Dir%/7-Zip/7zFM.exe']

[[installers.requirements]]
os = 'windows'
os_arch = 'x86'

[[installers]]
name = '7Zip-win64'
path = 'files2/7Zip-64-setup.exe'       # necessary
install_dir = '%ProgramFiles64Dir%\7-Zip'
check_processes_from_dirs = ['%ProgramFiles64Dir%\7-Zip']
processes = ['7z.exe','%ProgramFiles64Dir%\7-Zip\7zFM.exe']
[[installers.requirements]]
os = 'windows'
os_arch = 'x64'

Creating products with background metadata

The opsi-setup-detector from version 4.3.6.x supports the creation of the metadata required for the background installation. Until the official release of this new extension, the corresponding functions of the opsi-setup-detector are deactivated by default and must first be activated via the configuration. This is done by activating the config:

EnableBackgroundMetaData :
Activates the background install support: Shows the Background Info File button on the start tab. Makes the Product Configuration 3 tab visible and usable. Writes an opsi-meta-data.toml file during product creation.

After checking the box and closing the configuration dialog, you have to restart the opsi-setup-detector or change the language to reload the interface.

After successfully activating the background install support, you will be forwarded to Product configuration 3 after Product configuration 2, which displays the metadata to be saved.

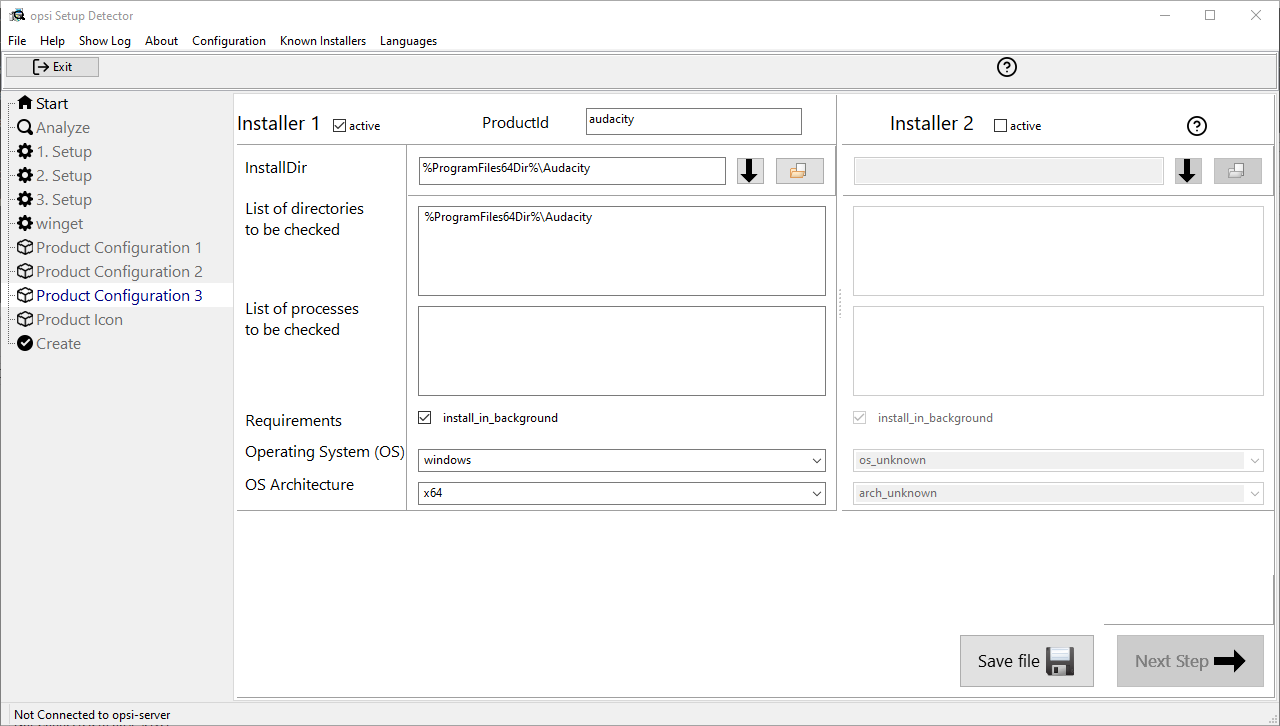

Product-Background Info
Figure 2. opsi-setup-detector: Product-Background Info

  • In order to generate metadata for a setup / installer file, the Installer 1 Active checkbox must be ticked.

  • The InstallDir field refers to the directory in which this software will be installed. If it is not yet filled in correctly, this can be entered here or selected using the selection button next to the input field.
    The InstallDir can be copied to the List of directories to be checked via the Down arrow button.

  • The List of directories to be checked field is a list containing one directory per line, which can be a source of critical processes. Usually only the installdir is listed here.

  • The List of processes to be checked field is a list containing one process name per line (with or without path), which can be a critical process. Usually there is nothing here.

  • If both lists are empty, no running processes are checked and the software is installed directly.

  • If there is a checkmark next to install_in_background, this means that this product may be installed in a Background Install Situation. If the check mark is removed, the product may not be installed in a Background Install Situation. Reasons for this could be required reboots or other side effects that cannot be handled.

  • The Operating System (OS) should always be set to windows. The extension opsi-background-install is not active for other operating systems.

  • The specification OS architecture indicates the architecture of the required operating system.
    Allowed here are x86, x64, arm64, arch_unknown. The requirement x86 is also fulfilled on an x64 Windows operating system. The requirement x64 is not fulfilled on an x86 Windows operating system. The arch_unknown requirement is always fulfilled.

If everything has been filled in correctly, click on the “Next step” button to exit the screen. The metadata file is automatically created when the opsi product is created using the Create Opsi Package button.

Provide legacy products with background metadata

The opsi-setup-detector from version 4.3.6.x offers the possibility to supply simply existing products with the required metadata. To do this, check the EnableBackgroundMetaData box in the configuration window (see above). Then the button Create Background Info File will be visible at the bottom of the start page. This is used to subsequently supply existing opsi products with the metadata file.

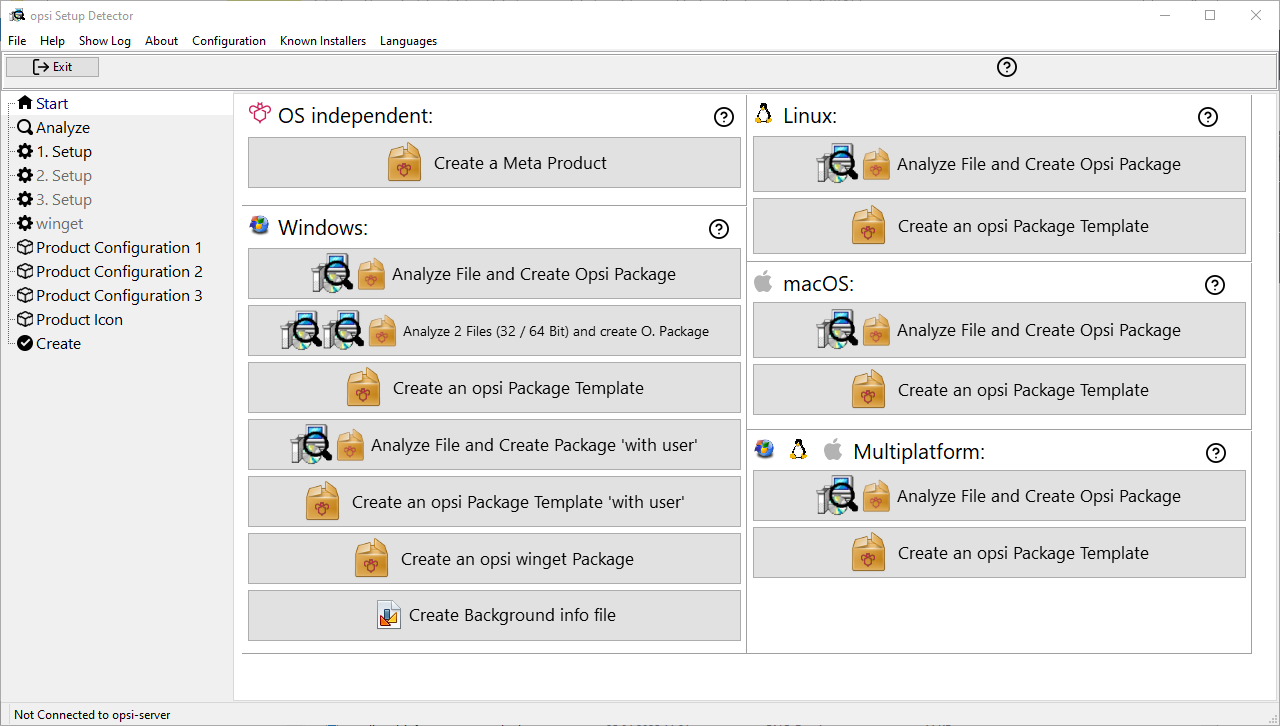

Start page with button Product-Background Info
Figure 3. opsi-setup-detector: Start page with button Product-Background Info

If the Create background info file button is pressed, an attempt is first made to determine data about the existing product via . For this purpose, an opsi-setup-detector project file (*.osd) is requested. You can cancel the dialog if such a file does not exist. In this case, you will be asked for an existing control file (control, control.toml). You can cancel the dialog if you do not want to use such a file or if it does not exist.
The information from the project or control file may be used to detect the operating system architecture and the package number.

The Product Configuration 3 screen is then displayed.

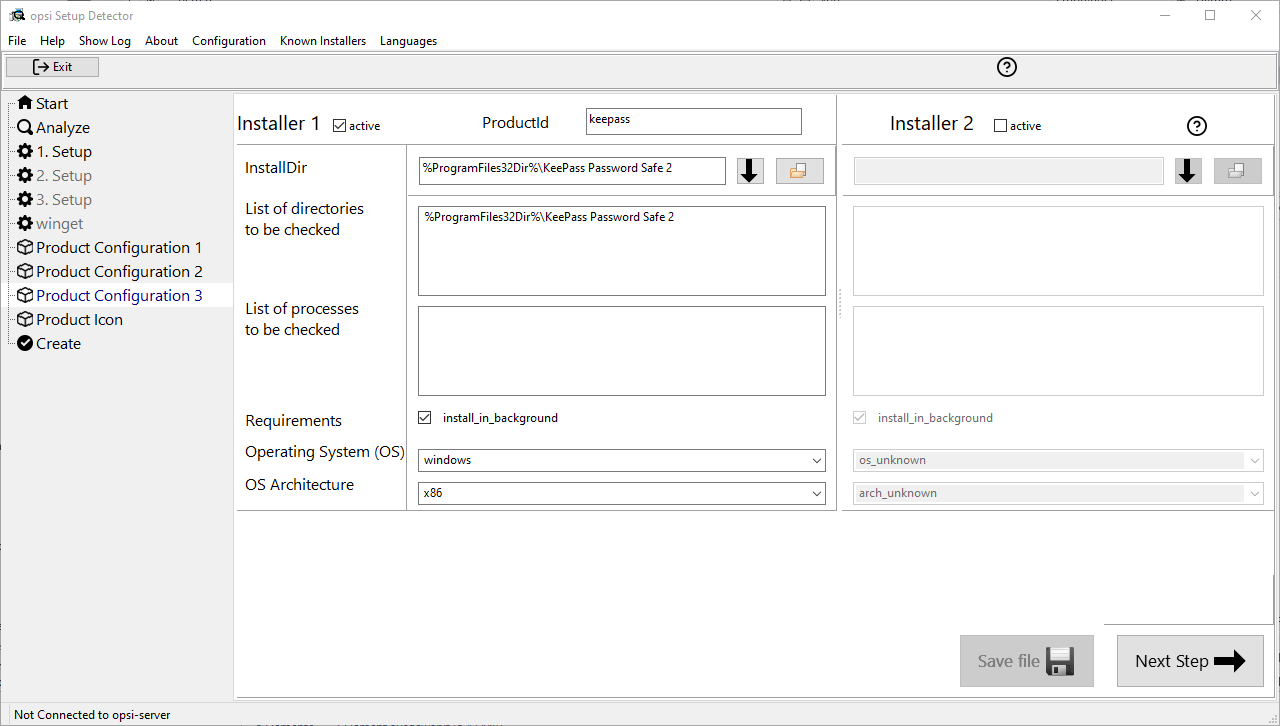

Product-Background Info
Figure 4. opsi-setup-detector: Product Configuration 3

The mask is filled in exactly as described in in the previous chapter.

If everything is filled in correctly, select the CLIENT_DATA directory of the opsi product via the Save file button and save the opsi-meta-data.toml file there.
In this case, the package number of the product is also increased by one and an entry is made in the changelog.md.
The product must then be rebuilt (opsi-make-package) and installed.
The metadata of the opsi product is now available.
